Skyworks is pleased to introduce Si858x: Isolated RS-485 Transceivers.

Si858x products combine robust fully compliant Rs-485 transceivers with Skyworks' Proprietary CMOS isolation technology. These devices are ideal for industrial applications that require isolated interfaces with a FieldBus system such as ProfiBus or ModBus, based on a RS-485 physical layer. The integrated isolation provides protection from high voltages and transient noise that could damage sensitive electronic components or corrupt signal integrity.

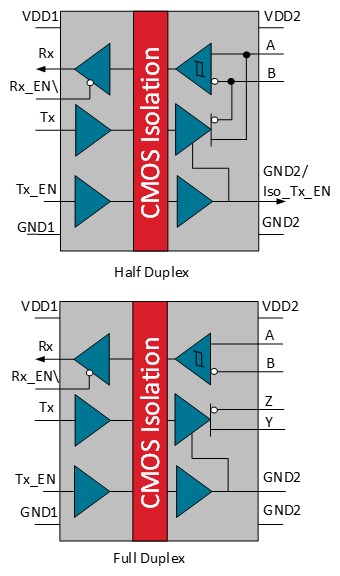

Si858x: Isolated RS-485 Transceivers

Features

• Compliance to TIA/EIA-485-A (RS-485), conformance to EN 50170 (ProfiBus)
• Signaling rates of 1 Mbps (slew rate limited) or up to 10 Mbps
• Robust isolation: 5.0 kVRMS max isolation, working voltage of 2121 Vpeak
• Bus fault protection: ±30 V; HBM 15 kV bus pin ESD ratings
• Immunity to noise: 100 kV/µs Common Mode Transient Immunity (CMTI)
• Pin compatibility with standard industry footprint
• Flexibility with product options: 3.3 V or 5.0 V rated options, half and full duplex configurations available

Benefits

• Guarantees operation and functionality per industry standard
• Supports low EMI or high data rate architectures
• Increased reliability & safety, qualifies for higher working voltage applications
• Robust industrial grade performance for reliable operation
• Ensures signal integrity in noisy industrial environments
• Reduce risk of supply chain disruption
• Easy to mix and match for broad based applications

Key Applications

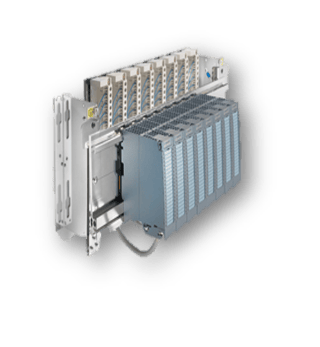

Factory Automation / Fieldbus

Programmable Logic Controllers (PLC)

Industrial I/O

Key Applications

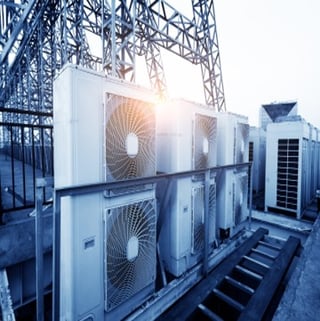

HVAC systems

Multi-family units meter reading

Key Applications

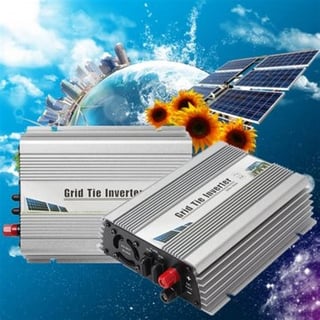

Solar inverters

Motor control & drives

Industrial inverters
