Skyworks is pleased to introduce the Si5360 Ultra-Low Jitter Clock Generator.

The Si5360 clock generator for high-speed networking, data center and communications equipment complements Skyworks’ current market leading Si5391/5341/5332 line of clock generators delivering higher levels of jitter performance with a greater number of clock outputs.

The Si5360 clock generator combines Skyworks’ 5^th generation DSPLL™ and MultiSynth™ technologies with an ultra-low jitter VCO to deliver outstanding 55 fs RMS phase jitter reference clocks for high-performance applications like 112G/224G PAM-4 SerDes and Coherent Optics that are used in 400G/600G/800G/1.2Tb Ethernet communications and data center equipment.

The Si5360 is used in applications that demand the highest level of integration and jitter performance. All PLL components are integrated on-chip, reducing the risk of noise coupling associated with discrete solutions and greatly simplifying the clock solution design.

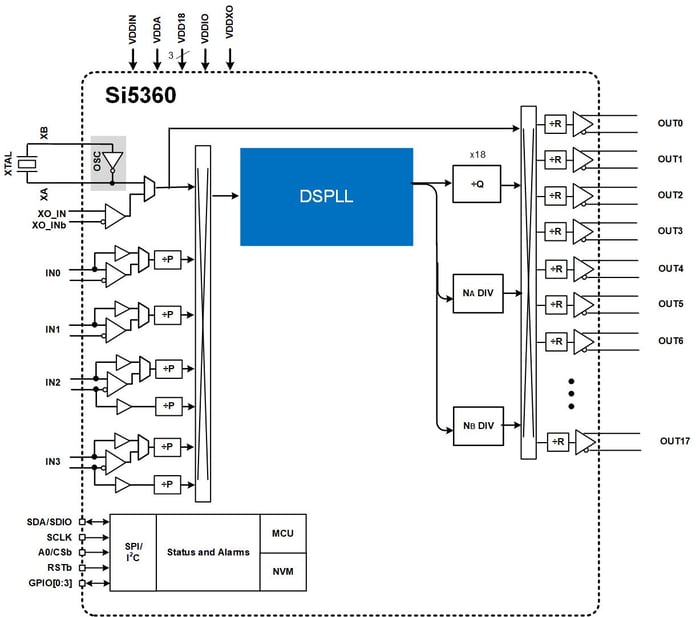

The Si5360 architecture has a one DSPLL with 2 MultiSynths enabling the capability of generating combinations of clock output frequencies that are integer- and non-integer related.

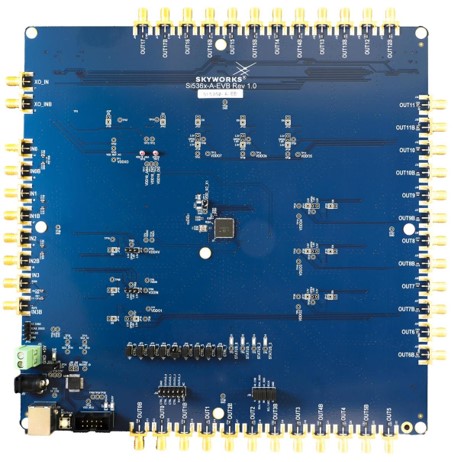

Si5360 Ultra-Low Jitter Clock Generator

Features

• Generates any mix of output frequencies
• Ultra-low jitter [12kHz -20MHz] – 55 fs (int) ; 64 fs (frac)
• Total outputs: 18
• Glitch-less, on-the-fly output frequency changes
• Configurable outputs: LVPECL, LVDS, S-LVDS, CML, HCSL, or LVCMOS
• Simplified API to replace complicated register read/writes (Frequency-on-the-fly/DCO, register status reads)

Applications

• 400/600/800G/1.2T Switches
• 56G/112G/224G PAM4 SerDes clocking
• Data center Switches/NIC/Edge Computing/Accelerator cards
• Clocking for FPGAs, PHYs, memory
• Clock tree generation replacing XOs, buffers, signal format translators
• Test/measurement equipment

Si5360 Application Example

Si5360 provides the highest integration 18 output clock IC with the best jitter performance for SyncE frequencies and lowest crosstalk between outputs.
